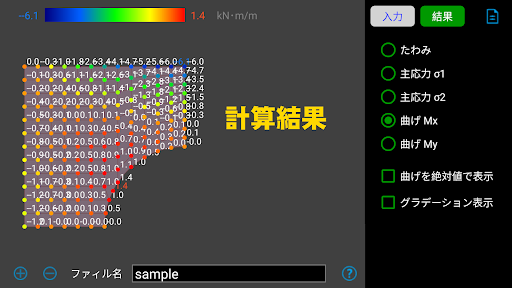

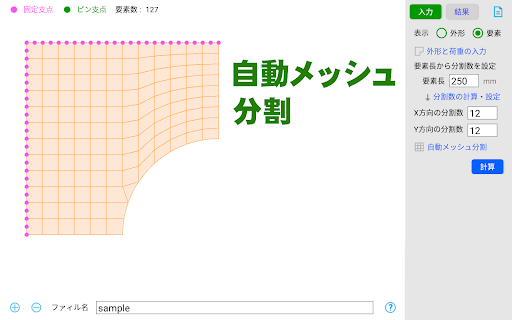

The bending of the thin plate that receives the load in the vertical direction and the plane stress of the thin plate that receives the load in the in-plane direction are analyzed by the finite element method.The outer shape of the board is rectangular, and circular or rectangular holes can be provided inside. By specifying the hole position, it is possible to create a shape with outside corners, inside corners, and arcuate notches.Mesh division of elements is performed automatically by specifying the element length or the number of divisions.The loads that can be specified are evenly distributed loads, linear loads, and concentrated loads.
かんたん平面板
